Aluminium Alloy Ingots

MAEPL makes a wide range of Aluminium Alloys like ADC12, AC4B, AS-9, LM-6, LM-24 etc for gravity and pressure die casting applications meeting AA, BS, LM, DIN, JIS, ASM standards.

Our specialization is to make customized alloys to suit the individual customer’s requirements exactly. The specifications of every alloy used by our customers are maintained in a comprehensive database to ensure that we fulfill their future requirements.

Aluminium scrap and virgin ingots are the major raw materials for manufacturing alloy ingots. Proper care is taken while handling and using the scrap. Efficient manufacturing practices, with the help of modern equipments for instant and accurate chemical analysis ensure total quality control right from melting till the alloy ingots are produced.



QUALITY CHECK FOR ALUMINIUM ALLOYS

MAEPL follows strict quality standards in all areas of operations, right from selection of raw materials to dispatch to its valued customers.

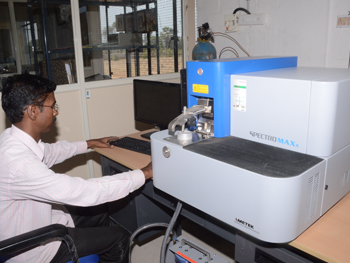

spectro Our plant is well equipped with the most advanced analysing instrument like Spectro meter using German technology, Image Analyser and Universal Testing Machine.

At every heating temperature, the alloy is checked intensely not only for its chemical composition but also for its grain size, dross content, gas content and physical strength.

Alloy samples are checked at 3 stages to ensure the uniformity in chemical composition, so as to meet customers’ requirements. We follow JIS, DIN, BS and ASM Standards. We can also manufacture as per the specification given by the customers.


MAEPL maintains a high quality standard for its products and services. The equipment and quality control systems for the production of alloys are as under:


Lab Equipments

Spectrometer (Spectromax German) Webster Hardness Tester Porosity Testing Machine Sample Cutting Machine Sample Turning Machine (Lathe) Sample Polishing Machine Rectangular Muffle Furnace Universal testing machine

Quality System Certification

We are an ISO: 9001-2008 certified company.


Incoming Material Check

Spectrometer Test for Chemical Composition Visual Check Segregation Quality Audits Control Plans

In process Quality Inspection System

Automatic Temperature Control Degassing & Fluxing Chemical Composition Check Oxide film removal Visual Inspection

Finished Goods Quality Inspection System

Process Audits Control Plans Microstructure test Final chemical composition test

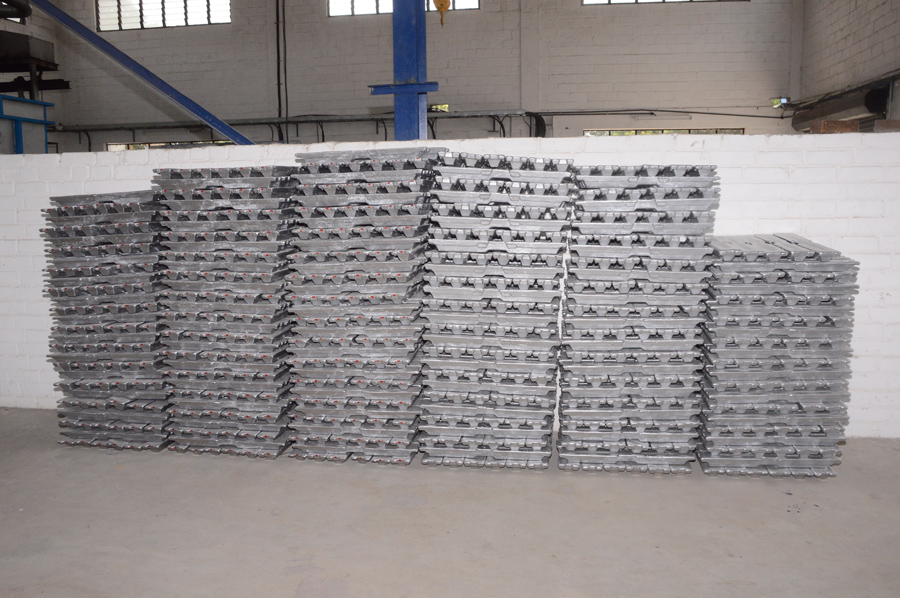

Packing Process for Alloy Ingots

Proper Stacking Bundling Tag system for identification Colour coding is done to differentiate alloys as per customers’ requirement. Each bundle is strapped with a PVC/MS strip as per the customer’s requirement. This is done with the help of our strapping machine in four lines to avoid bundle breakage during transportation. It is then packed with stretch film.
TABLES FOR WROUGHT ALLOYS

Wrought Alloys: Alloy Equivalent (Approx.)

India U.S.A Britain Canada  Germany Russia I.S.O French
New IS  Old IS (A.A.) (B.S.)   (DIN)     ND
19500 1B 1050 1B 1S Al-99.5 ---- A1-99.5 1050A
19000 1C 1100 1C 2S Al-99.0 AD Al-99.0 1200
65032 H20 6061 H20 65S Al-Mg Si Cu ---- Al-Mg-1 Si Cu ----
63400 H9 6063 H9 50S Al-Mg Si 0.5 ---- Al-Mg-Si ----
64423 H11 6066 H11 C62S ---- ---- ---- ----
63401 91E 6101 91E D50S E.Al.Mg Si 0.5 ---- ---- ----
64401 ---- 6201 ---- ---- ---- ---- ---- ----
64430 H30 6351 H30 B51S Al-Mg-Si 1 AV Al-Si-1 Mg 6081

Wrought Alloys: Chemical Composition Limits (Percentage)

Alloy                         (ISS) Equivalent alloy (A.A.) Coper Magnesium Silicon Iron Manganese *Others                        ( total )
Old New U.S.A Min Max Min Max Min Max Max Min Max  Max Remarks
1B 19500 1050 ----- 0.05 ----- ----- ----- 0.30 0.4 ----- 0.05 0.1 Aluminium 99.5% Min.
1C 19000 1100 ----- 0.1 ----- ----- ----- 0.50 0.6 ----- 0.1 0.1 Aluminium 99.0% Min.
H 20 65032 6061 0.15 0.4 0.7 1.2 0.4 0.8 0.7 0.2 0.8 0.4 Chromium (0.15 -0.35) Either Mn or Cr. shall be present.
H 9 63400 6063 ----- 0.1 0.4 0.9 0.3 0.7 0.6 ----- 0.3 0.4 Chromium up to 0.10
----- ----- 6066 0.7 1.2 0.8 1.4 0.9 1.8 0.7 0.6 1.1 0.4 -----
91 E 63401 6101 ----- 0.05 0.4 0.9 0.3 0.7 0.5 ----- 0.03 0.1 -----
----- 64401 6201 ----- 0.1 0.6 0.9 0.5 0.9 0.5 ----- 0.03 0.1 -----
H30 64430 6351 ----- 0.1 0.4 1.2 0.6 1.3 0.6 0.4 1.0 0.3 Chromium upto 0.25

Heat: Treatable Alloys

Alloy AA  Temper Ultimate tensile  0.2% Proof Elongation
Old (ISS)   Strenght Kg/ mm2 Stress on
New (ISS)    Min. Max. Kg / mm2 50 mm GL
6061 ( H 20 )  M or O  ---- 15.0 ---- 16
(65032) T 4 (W) 19.0 ---- 11.5 14
  T 6 (WP) 28.5 ---- 24.0 7
6063 ( H 9 ) T 4 (W) 14.0 ---- 8.0 14
(63400) T 6 (WP) 19.0 ---- 15.5 7

6066 0 ---- 20.5 ---- 16
  T 4 (W) 28 ---- 17.5 14
  T 6 (WP) 35 ---- 31.5 7
6101  (91 E) T 4 (W) 14.0 ---- 8.0 12
(63401) T 6 (WP) 20.5 ---- 17.0 10

6201 T 4 (W) 16 ---- 7.0 14
(64401) T 8 (WDP) 32 ---- ---- 3

6351 ( H 30 ) M or O ---- 15 ---- 16
(64430) T 4 (W) 19.0 ---- 12.0 14
  T 6 (WP) 31.5 ---- 27.5 7

CHEMICAL COMPOSITIONS OF ALUMINIUM ALLOY

USA Cu% Mg% Si% Fe% Zn% Mn% Ni% Sn% Cr% Ti% Pb%
Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max
A 360   0.60 0.40 0.60 9.00 10.00   1.30   0.50   0.35   0.50   0.15
A360.1   0.60 0.40 0.60 9.00 10.00   1.00   0.40   0.10   0.50   0.15
A380.0 3.00 4.00   0.30 7.50 9.50   1.30   3.00   0.50   0.50   0.35
A380.1 3.00 4.00   0.10 7.50 9.50   1.00   2.90   0.50   0.50   0.35
A 383 2.00 3.00 0.10 0.30 9.50 11.50   1.30   3.00   0.50   0.30   0.15
A383.1 2.00 3.00 0.15 0.30 9.50 11.50   1.00   2.90   0.50   0.30   0.15
UK Cu% Mg% Si% Fe% Zn% Mn% Ni% Sn% Cr% Ti% Pb%
Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max
LM 2 0.70 2.50   0.30 9.00 11.50   1.00   2.00   0.50   0.50   0.20       0.20   0.30
LM 4 2.00 4.00   0.15 4.00 6.00   0.80   0.50 0.20 0.60   0.30   0.10       0.20   0.10
LM 5   0.10 3.00 6.00   0.30   0.60   0.10 0.30 0.70   0.10   0.05       0.05   0.05
LM 6   0.10   0.10 10.00 13.00   0.60   0.10   0.50   0.10   0.05       0.10   0.10
LM 9   0.10 0.20 0.60 10.00 13.00   0.60   0.10 0.30 0.70   0.10   0.05       0.20   0.10
LM10   0.10 9.50 11.00   0.25   0.35   0.10   0.10   0.10   0.05       0.20   0.05
LM12 9.00 11.00 0.20 0.40   2.50   1.00   0.80   0.60   0.50   0.10       0.20   0.10
LM13 0.70 1.50 0.80 1.50 10.00 12.00   1.00   0.50   0.50   1.50   0.10       0.20   0.10
LM16 1.00 1.50 0.40 0.60 4.50 5.50   0.60   0.10   0.50   0.25   0.05       0.20   0.10
LM18   0.10   0.10 4.50 6.00   0.60   0.10   0.50   0.10   0.05       0.20   0.10
LM20   0.40   0.20 10.00 13.00   1.00   0.20   0.50   0.10   0.10       0.20   0.10
LM21 3.00 5.00 0.10 0.30 5.00 7.00   1.00   2.00 0.20 0.60   0.30   0.10       0.20   0.21
LM22 2.80 3.80   0.05 4.00 6.00   0.60   0.15 0.20 0.60   0.15   0.05       0.20   0.10
LM24 3.00 4.00   0.30 7.50 9.50   1.30   3.00   0.50   0.50   0.20       0.20   0.30
LM25   0.10 0.20 0.45 6.50 7.50   0.50   0.10   0.30   0.10   0.05       0.20   0.10
LM26 2.00 4.00 0.50 1.50 8.50 10.50   1.20   1.00   0.50   1.00   0.10       0.20   0.20
LM27 1.50 2.50   0.30 6.00 8.00   0.80   1.00 0.20 0.60   0.30   0.10       0.20   0.20
LM28 1.30 1.80 0.80 1.50 17.00 20.00   0.70   0.20   0.60 0.80 1.50   0.10       0.20   0.10
LM29 0.80 1.30 0.80 1.30 22.00 25.00   0.70   0.20   0.60 0.80 1.30   0.10       0.20   0.10
LM30 4.00 5.00 0.40 0.70 16.00 18.00   1.10   0.20   0.30   0.10   0.10       0.20   0.10
JIS H5202 (1986) Cu% Mg% Si% Fe% Zn% Mn% Ni% Sn% Cr% Ti% Pb%
Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max
AC1A 4.00 5.00   0.15   1.20   0.50   0.30   0.30   0.05   0.05   0.05   0.25   0.05
AC1B 4.00 5.00 0.15 0.35   0.02   0.35   0.10   0.10   0.05   0.05   0.05 0.05 0.30   0.05
AC2A 3.00 4.50   0.25 4.00 6.00   0.80   0.55   0.55   0.30   0.05   0.15   0.20   0.15
AC2B 2.00 4.00   0.50 5.00 7.00   1.00   1.00   0.50   0.35   0.10   0.20   0.20   0.10
AC3A   0.25   0.15 10.00 13.00   0.80   0.30   0.35   0.10   0.10   0.15   0.20   0.10
AC4A   0.25 0.30 0.60 8.00 10.00   0.55   0.25 0.30 0.60   0.10   0.05   0.15   0.20   0.10
AC4B 2.00 4.00   0.50 7.00 10.00   1.00   1.00   0.50   0.35   0.10   0.20   0.20   0.20
AC4C   0.25 0.25 0.45 6.50 7.50   0.55   0.35   0.35   0.10   0.05   0.10   0.20   0.10
AC4CH   0.20 0.20 0.40 6.50 7.50   0.20   0.10   0.10   0.05   0.05   0.05   0.20   0.05
AC4D 1.00 1.50 0.40 0.60 4.50 5.50   0.60   0.30   0.50   0.20   0.10   0.15   0.20   0.10
AC5A 3.50 4.50 1.20 1.80   0.60   0.80   0.15   0.35 1.70 2.30   0.05   0.15   0.20   0.05
AC7A   0.10 3.50 5.50   0.20   0.30   0.15   0.60   0.05   0.05   0.15   0.20   0.05
AC7B   0.10 9.50 11.00   0.20   0.30   0.10   0.10   0.05   0.05   0.15   0.20   0.05
AC8A 0.80 1.30 0.70 1.30 11.00 13.00   0.80   0.15   0.15 0.80 1.50   0.05   0.10   0.20   0.05
AC8B 2.00 4.00 0.50 1.50 8.50 10.50   1.00   0.50   0.50 0.10 1.00   0.10   0.10   0.20   0.10
AC8C 2.00 4.00 0.50 1.50 8.50 10.50   1.00   0.50   0.50   0.50   0.10   0.10   0.20   0.10
AC9A 0.50 1.50 0.50 1.50 22.00 24.00   0.80   0.80   0.50 0.50 1.50   0.10   0.10   0.20   0.10
AC9B 0.50 1.50 0.50 1.50 18.00 20.00   0.80   0.80   0.50 0.50 1.50   0.10   0.10   0.20   0.10
JIS H2212 (1990) Cu% Mg% Si% Fe% Zn% Mn% Ni% Sn% Cr% Ti% Pb%
Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max
ADC1   1.00   0.30 11.00 13.00   0.90   0.50   0.30   0.50   0.10
ADC3   0.60 0.40 0.60 9.00 10.00   0.90   0.50   0.30   0.50   0.10
ADC5   0.20 4.10 8.50   0.30   1.10   0.10   0.30   0.10   0.10
ADC6   0.10 2.60 4.00   1.00   0.80   0.40 0.40 0.60   0.10   0.10
ADC10 2.00 4.00   0.30 7.50 9.50   0.90   1.00   0.50   0.50   0.30
ADC10Z 2.00 4.00   0.30 7.50 9.50   0.90   3.00   0.50   0.50   0.30
ADC12 1.50 3.50   0.30 9.60 12.00   0.90   1.00   0.50   0.50   0.30
ADC12Z 1.50 3.50   0.30 9.60 12.00   0.90   3.00   0.50   0.50   0.30
ADC14 4.00 5.00 0.50 0.65 16.00 18.00   0.90   1.50   0.50   0.30   0.30
